Tow Behind Air Cart
About Tow Behind Air Cart
High-capacity, high-efficiency seeding, built for scale and wide working widths.
A critical component in a planting operation, our air carts deliver for precise seed delivery, great reliability and the ability to handle any paddock in a range of capacities.
Designed for large-scale cropping operations, BOSS Tow Behind Air Carts maximise capacity while keeping your seeding operation moving efficiently. With robust construction, excellent ground-following performance and smart metering systems, these carts are ideal for broad working widths and extended runs between fills. Available in a range of capacities 4500L, 9000L, with dual- or triple-bin setups with optional small seed boxes. These are available in two wheeled, steerable quad or castoring quad variations.
Features
Available in 2 Wheeled, Steerable Quad or Castoring Quad.
2 and 3 bin models available.
Small seeds box available.
Standard with hydraulic drive metering system.

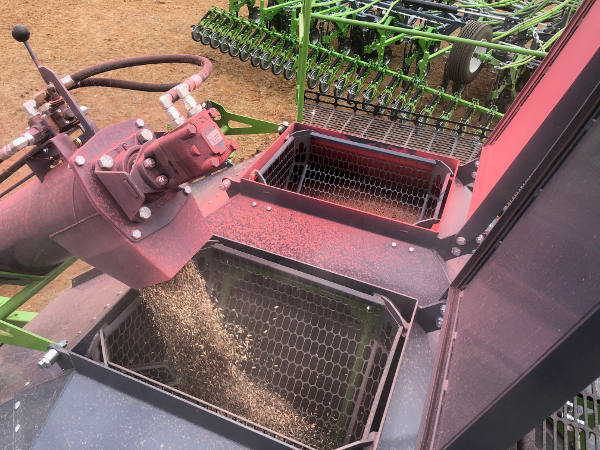

Hydraulically operated auger.
Hydraulic opening bin lids can be operated at ground level for safety & efficiency.
Large sight glass in both bins is standard.
LED lights standard.
Fully powder-coated inside & outside boxes standard.
Stainless steel fittings & fixtures used in the metering unit.
Fully stainless steel metering unit bodies.
Up to 8 x 2½” primary lines.
Exceptional flotation.
Heavy duty chassis & front end assembly.
Easy clean out.
Ability to split rates.
Quick release removable metering rollers.
Grit impregnated powder-coating on stairs and catwalk for safety.
Auger cradle for ease when loading.
ISOBUS ready – will operate through most late model consoles.
Short wheel base for tighter turning radius.
2, 3 or 4 metre centres available.
Internal access ladder.
Heavy duty blower motor.
Weigh scales & weigh bin supplied.

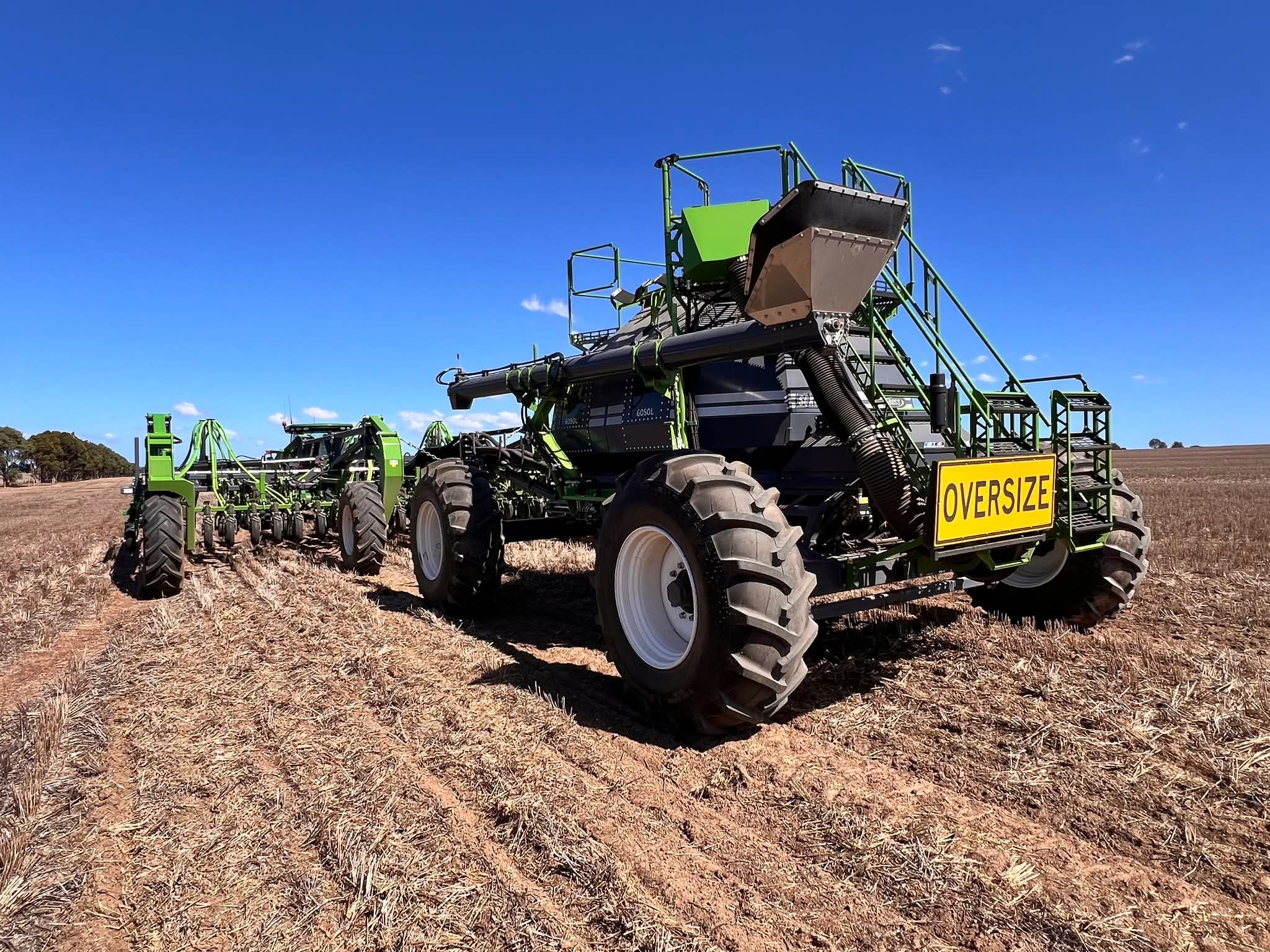

Optional oversize sign, flashing lights or tail light kits available.
Optional bin cameras available.
Oil cooler standard.
Optional rear pull available for towing a liquid or gas trailer.
Designed, made and owned in Australia
Products |
Empty Mass |
Nominal Capacity |
Wheel Spacing |
Bin Splits |
|
4500L 2m 2-Bin Frame Mount Air Seeder |
8700kg (w/ Row Units) |
4500L |
2m |
40%: 1800L / 60%: 2700L |
|
9000L 2m 2-Bin Castoring Air Seeder |
4400kg |
9100L |
2m |
45%: 4100L / 55%: 5000L |
|
9000L 3m 2-Bin Castoring Air Seeder |
4600kg |
9100L |
3m |
45%: 4100L / 55%: 5000L Or 50%: 4550L / 50%: 4550L |
|
9000L 3m 2-Bin Steerable Air Seeder |
4600kg |
9100L |
3m (4m Optional) |
45%: 4100L / 55%: 5000L |
|
9000L 3m 3-Bin Steerable Air Seeder |
5000kg |
9400L |
3m (4m Optional) |
37.5%: 3525L / 25%: 2350L / 37.5%: 3525L |
|
12000L 3m 2-Bin Steerable Air Seeder |
5300kg |
12100L |
3m (4m Optional) |
45%: 5450L / 55%: 6650L |
|
12000L 3m 3-Bin Steerable Air Seeder |
5500kg |
12400L |
3m (4m Optional) |
37.5%: 4650L / 25%: 3100L / 37.5%: 4650L |
|
20000L 3m 3-Bin Steerable Air Seeder |
8500kg |
20195L |
3m (4m Optional) |
35%: 7150L / 30%: 5895L / 35%: 7150L |
