Our standard linkage frames are manufactured using a 200mm x 200mm RHS mainframe and a remote 100mm x 100mm RHS toolbar that the BOSS range of row units bolt on to. This allows for a lot of flexibility around row spacings or future changes in your farming operation. Frames are available in widths from 6-18 metres, with single and double fold options available. Single bar frames suit all BOSS row units and are available with lift assist or offset linkages if required.
Models
Single Bar Linkage
Two Bar Linkage
Our two bar linkage frames are manufactured using 100mm x 100mm RHS and allow for the fitment of all BOSS row units. Two bar frames may be required for narrow spacings on disc machines or to promote stubble flow on tyne machines and are available with lift assist or offset linkages if required. We can also mount liquid tanks or air seeder bins on top to deliver a compact highly maneuverable machine. Two bar machines are available in widths from 6-12 metres with various fold options available.

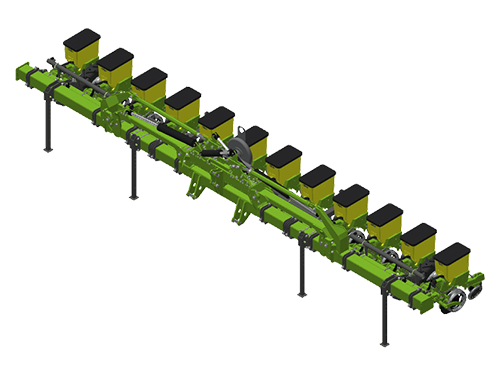

Stackfold
Our linkage stackfold frames are manufactured using a 200mm x 200mm RHS mainframe and a remote 100mm x 100mm RHS toolbar that the BOSS range of row units bolt on to. This allows for a lot of flexibility around row spacing or future changes in your farming operation. Frames are available in widths from 9-12 metres with rigid or contour following wings available. Stackfold frames suit all BOSS disc row units and are available with lift assist or offset linkages if required. Our 12 metre Stackfold folds up to under 6 metres for travel.
Product Compatibility
Precision Tyne Series (2 or 3 Bar Linkage Frames)
BOSS Agriculture’s Precision Tyne Series sets the standard in broadacre seeding, designed from experience to deliver a seeding unit that is accurate, tough and simple to operate and maintain.
Single Disc Series
In the development of our single disc row units we address many of the challenges minimum tillage farmers face. Our row units are effective at penetrating tight soils and are equally capable when faced with the sticky conditions often encountered during winter planting.
Double Disc Series
Our double disc units have been developed primarily for minimum or no-till broadacre farming applications where a tough, simple, highly accurate seeder is required. These units offer superior seed placement, excellent ground following ability and minimal ground disturbance/moisture loss.
